imess F510smart inspects the marking of suspension springs

Suspension springs are produced with various marks to allocate each spring to its respective type and load group as well as to document the production process. imess F510 smart supports the operator during system setup by checking the colour and textcode marks for several characteristics.



Concept

innovative concept to check marking of suspension springs

The measurement cabin over the prism belt includes two colour cameras which records the pictures. The software then analyses at once with regard to the characteristics.

Features

The wizard enables an exact and uncomplicated expansion of the products

The Basics

The first step defines the spring name and its respective load group. Furthermore, the number of coils is set and the mark type has to be selected.

Define Model

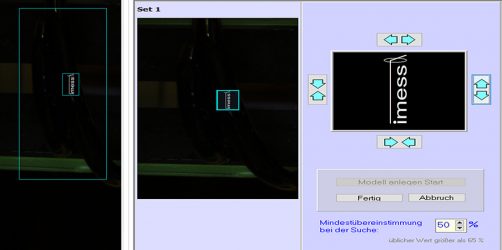

The Teach-In provides a model to allot text code. The search region is drawn with either arrow keys or cursor directly within the camera picture.

React smart

The software smartly reacts to spring movement and automatically adjusts the search region. Therefore, the automatic process is guaranteed despite slight changes of the spring position.

Inline Inspection of every

Marking due to a

smart test concept

Characteristics

Whether color marking or matrix code. imess F510smart inspects the signature of the suspension spring.



Colour Marks

Text Code / Pictogramme

Matrix Code / Barcode

Quantity

present

present

Order

correct

correct

Size

Distance

Hue

Software

operator-friendly measurement software for evaluation and recording



  • guided Teach-In

  • Test Plan Management

  • Process Control

  • Statistik

  • various graphical displays

  • optional: server connection
